SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless
KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| CH6020 | 0.12 | 14.0/194.4 | 0.10 | 18.0/250.0 | 0.09 | 20.0/277.7 | Titanium & Alu | Coreless | Semi-metal | 41.3*20.5*38.3 | 69.0 |
Application :
1/8 Electric/ Car
1/8 Nitro/ Car
1/8 2 4WD /Off-road
1/8 /Off-road
1/8 /Off-road
1/8 Off-road
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive

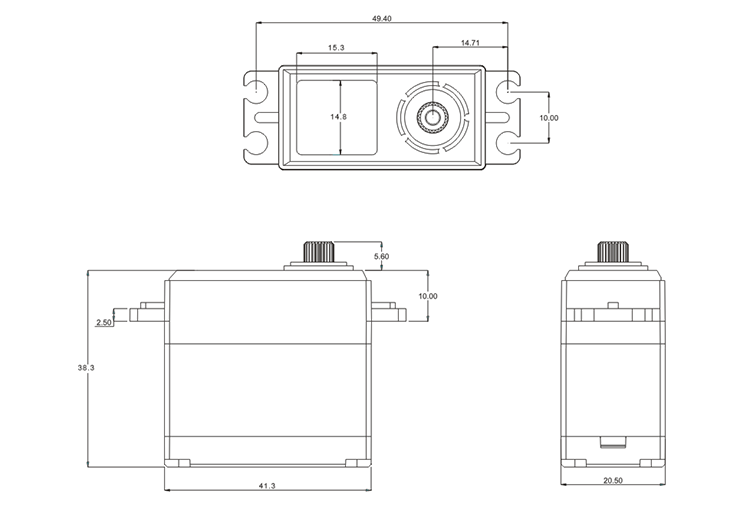

dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
