SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital (small size) ist auf Lager und wird versandt, sobald es wieder verfügbar ist

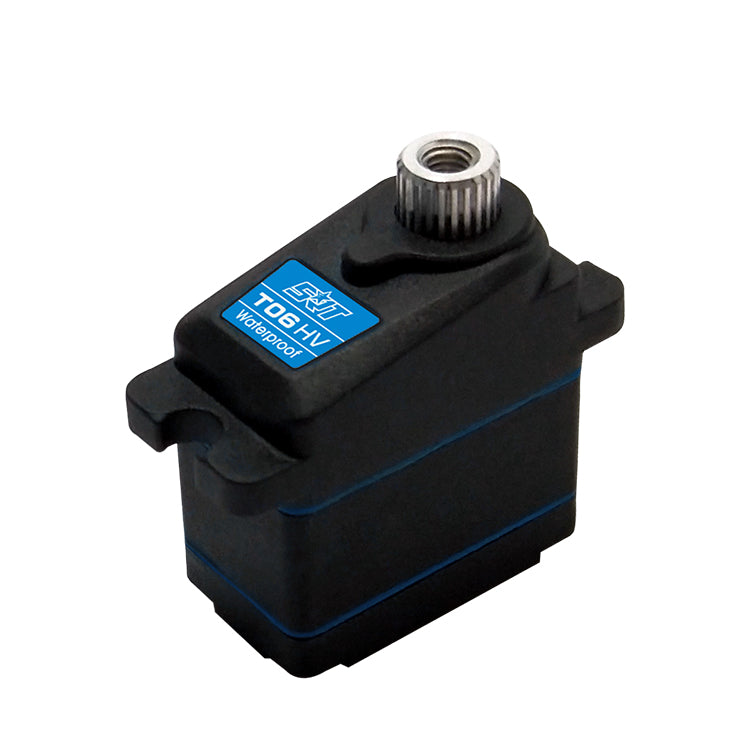

SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital (small size)
Verfügbarkeit für Abholungen konnte nicht geladen werden
SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital...
Beschreibung
Beschreibung
SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital (small size)
KEY FEATURES
& Ideal for 1/10 on road and 1/10 off road scale applications
& incredible efficiency and low power consumption
& Superior waterproof
& 1-Year Limited Warranty
| Item no | 4.8V | 6.0V | 7.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| T06HV | 0.16 | 1.9/26.4 | 0.12 | 2.5/34.7 | 0.10 | 2.8/38.9 | Copper & Alu | DC | Plastic | 22.5*12.5*24.0 | 16.0 |
Application :
1/10 Off-road
1/10 Off-road
Electric/ BOAT
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.16 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
stall torque (4.8v): 1.9kg.cm (26.4 oz/in)
stall torque (6.0v): 2.5kg.cm (34.7 oz/in)
stall torque (7.4v): 2.8kg.cm (38.9 oz/in)
potentiometer drive: direct drive

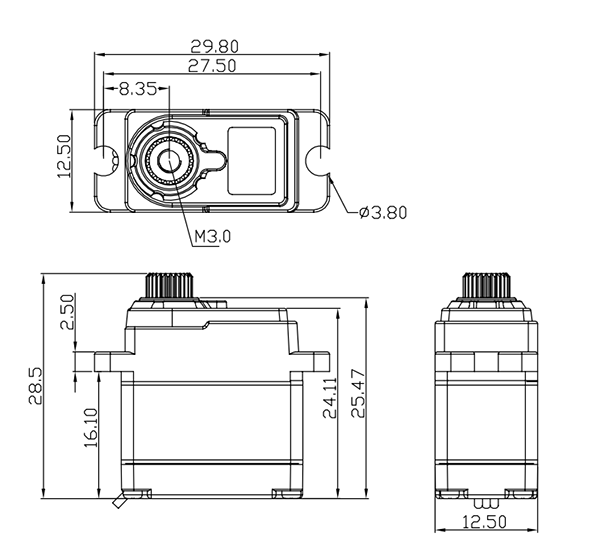

dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
weight: 16.0g (0.56 oz)
connector wire length: jr 350 mm
