The wing position greatly affects the handling of your car. It's a powerful setup option to adjust your car to certain grip conditions and track layouts. Mounting the wing correctly and especially straight isn't as easy, but very important!

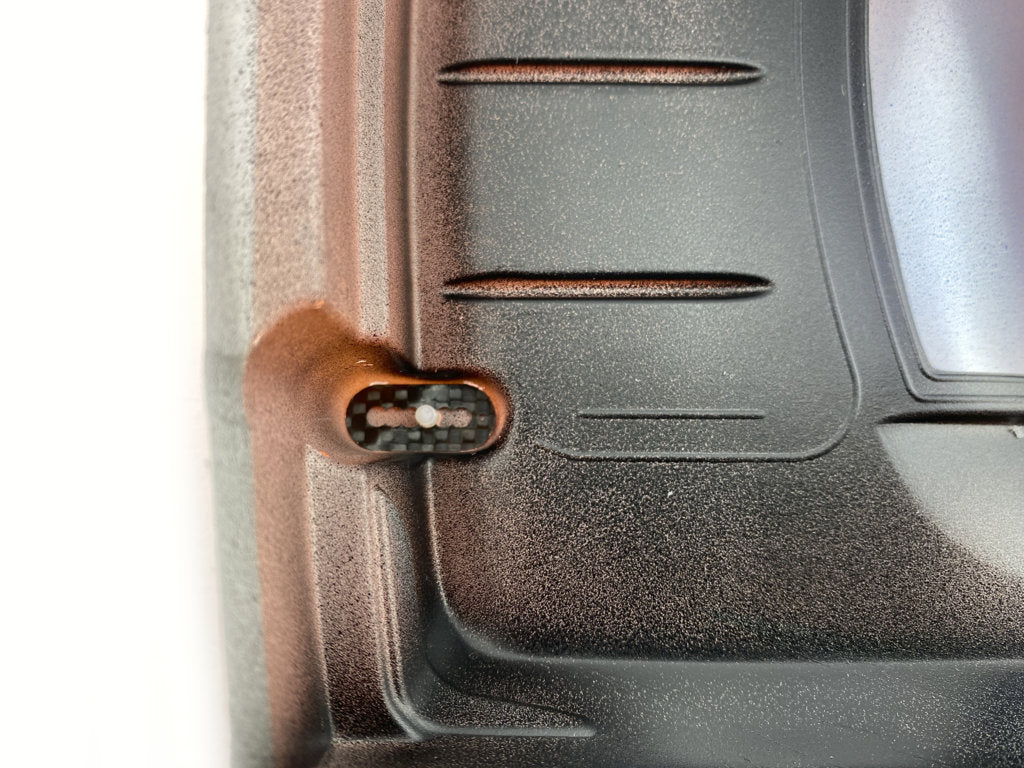

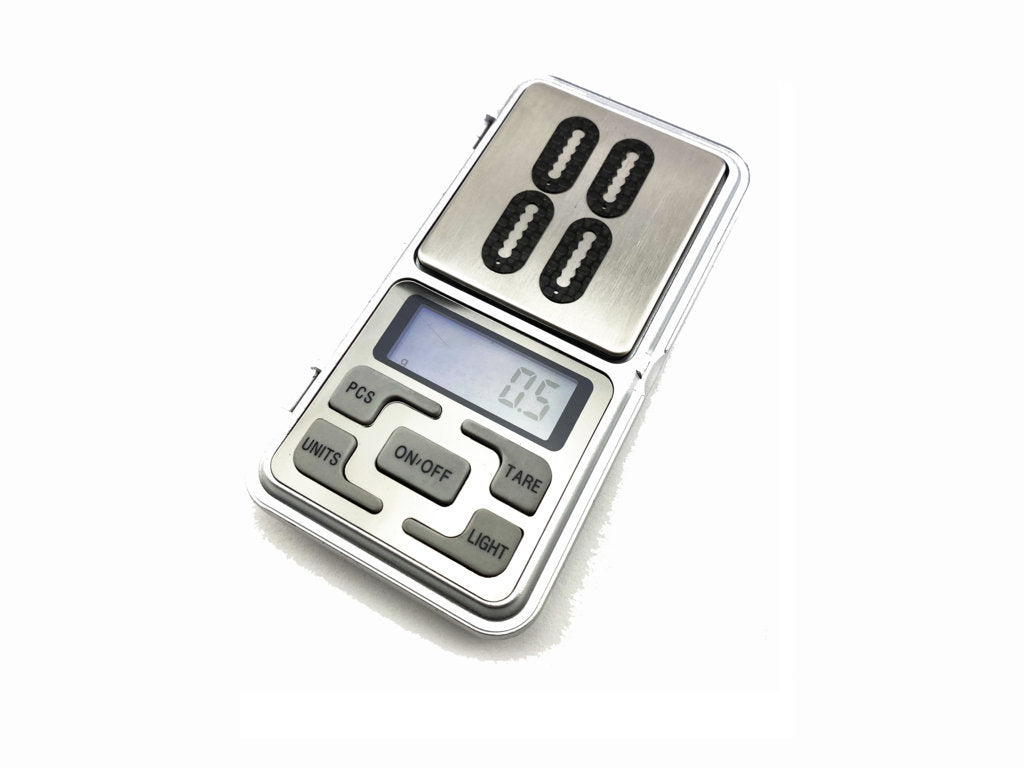

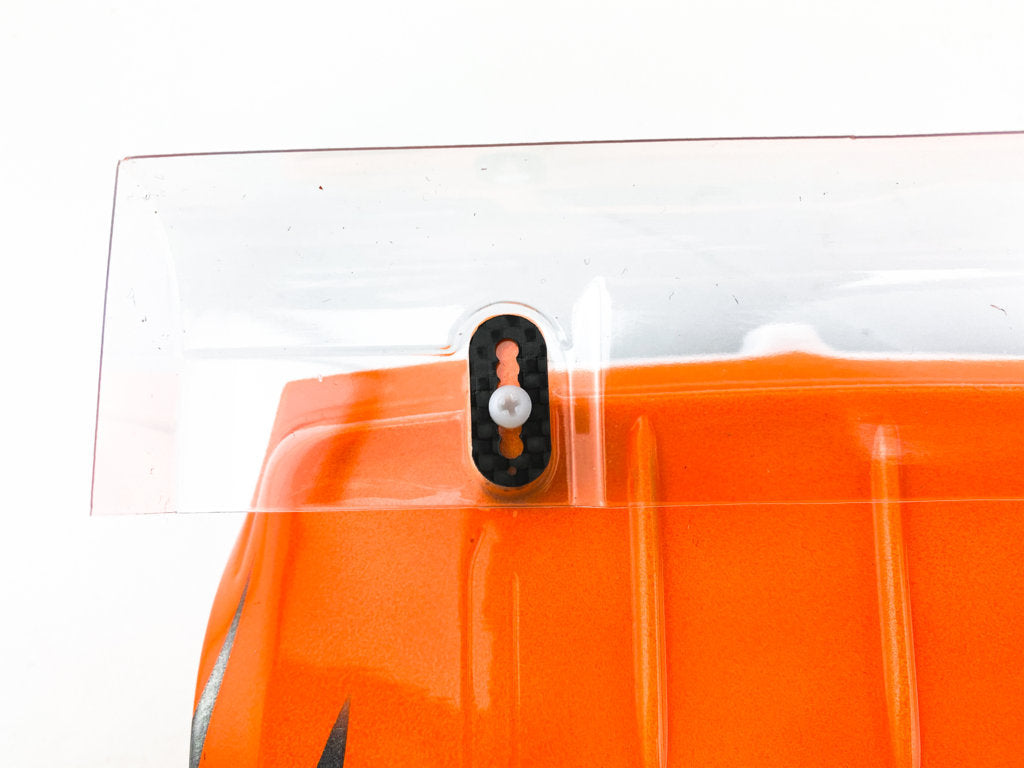

Our CNC cutted Precision Carbon Wing Mount plates are sturdy and lightweight to keep the CG of your bodyshell as low as possible. The plates are mounted one from the inside in the wing mount and one on top of the wing.
We recommend using our Precision Wing Mount set, as the Carbon plates have the same shape and hole pattern as the aluminum drill jig and to match up perfectly. The large footprint of this plates will help on the top side to keep the wing deformation as minor as possible.

Additionally, this set offer the possibility to drill holes in a specific distance to each other in order to change the wing position and affect the handling. The distance between each hole in the drill jig and the Carbon Wing Mount Plates is 2,5mm. This allows you to adjust the wing position in 2,5mm steps inside the same bodyshell. The total adjustment range of 12,5mm.

 The Precision Carbon Wing Mount Plates are suitable for following Bodyshells:
- ZooRacing ZooZilla
- ZooRacing PreoPard
- ZooRacing DogsBollox
- ZooRacing HellCat
- ZooRacing BayBee
- ZooRacing Wolverine
- ZooRacing ZooDiac
- Xtreme Twister
- Xtreme Twister Speciale
- Mon-Tech YSOT

Size (WxLxT): 10x22x0,5mm

MAX-05-003 contains:

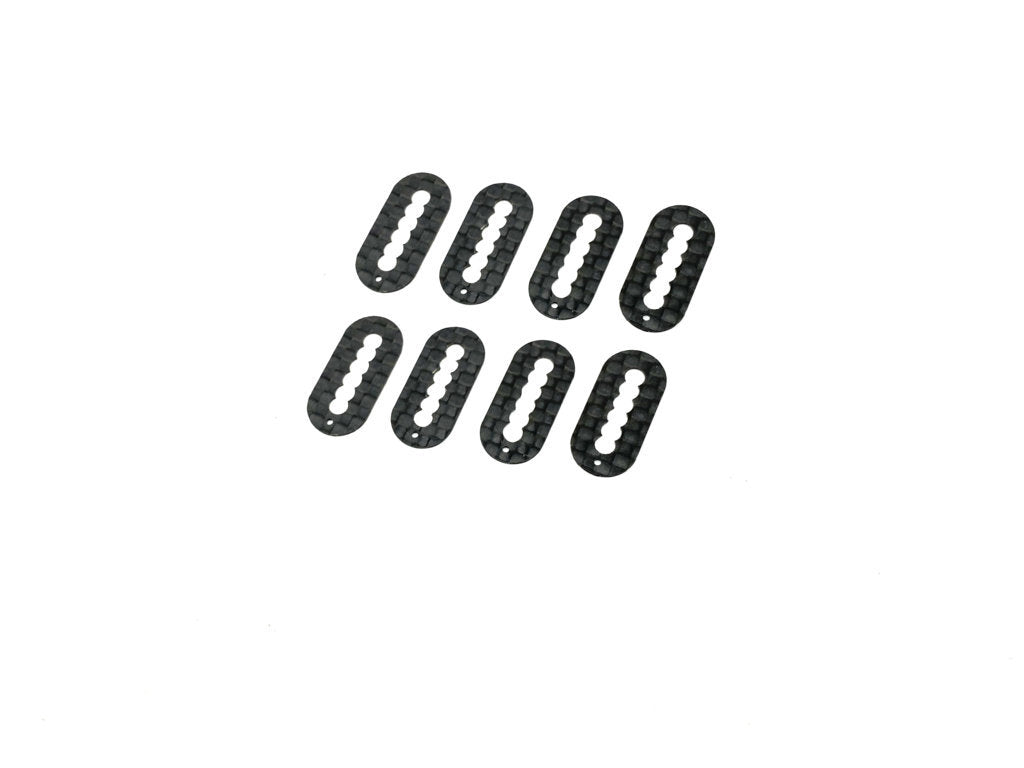

8x Precision Carbon Wing Mount plate
