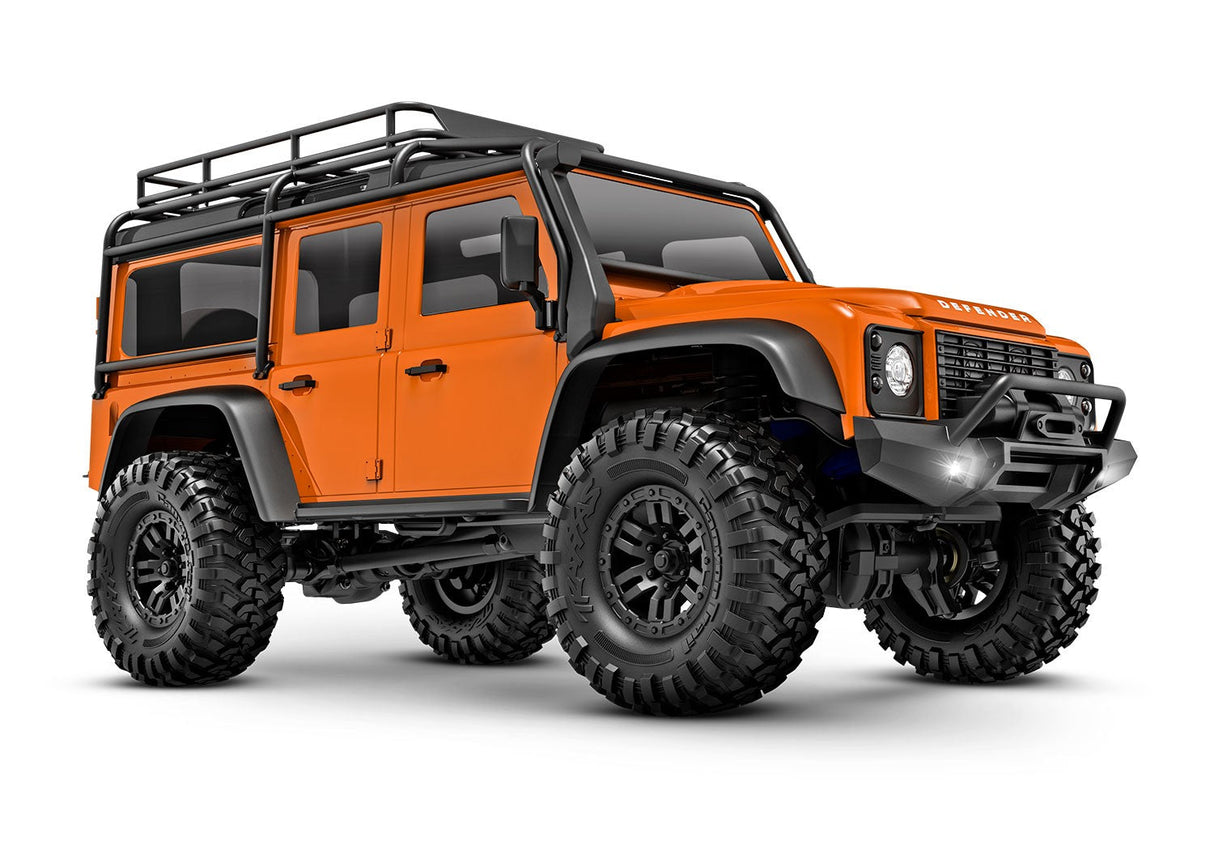

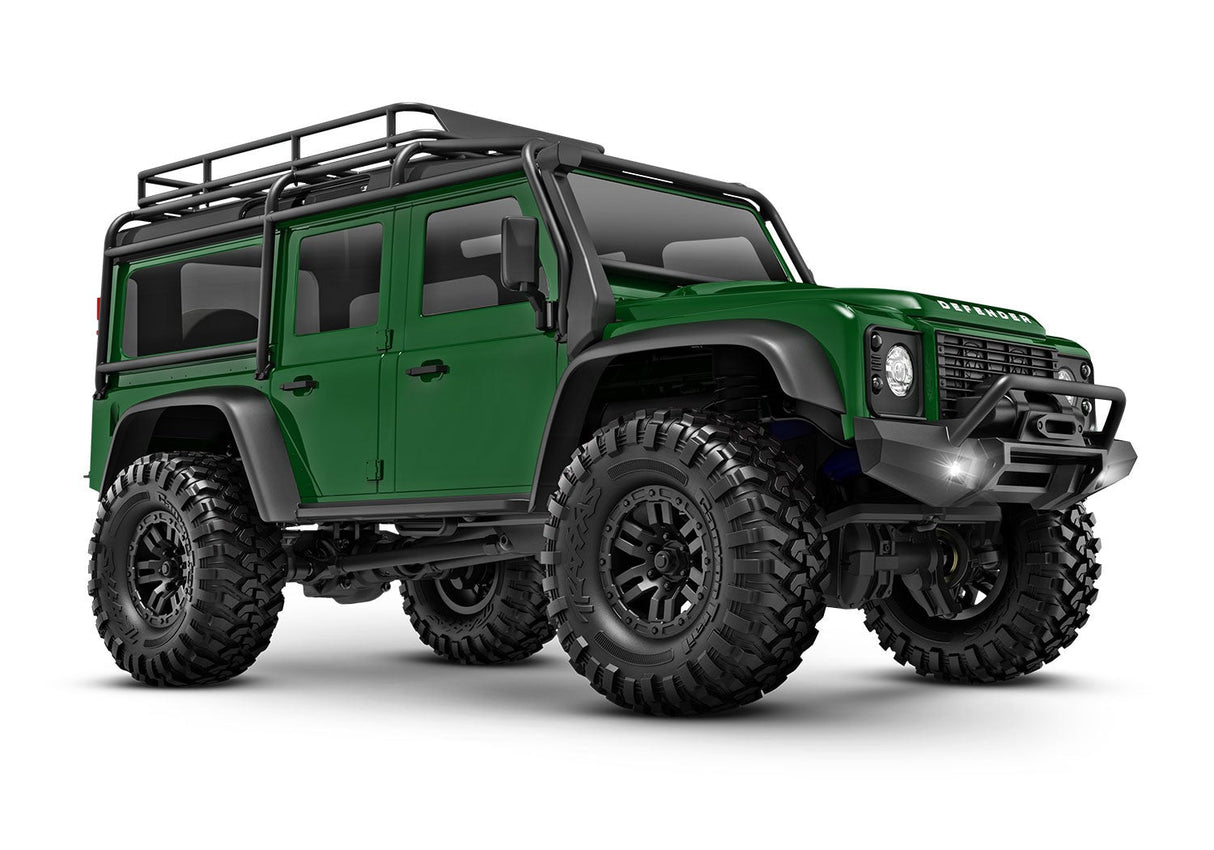

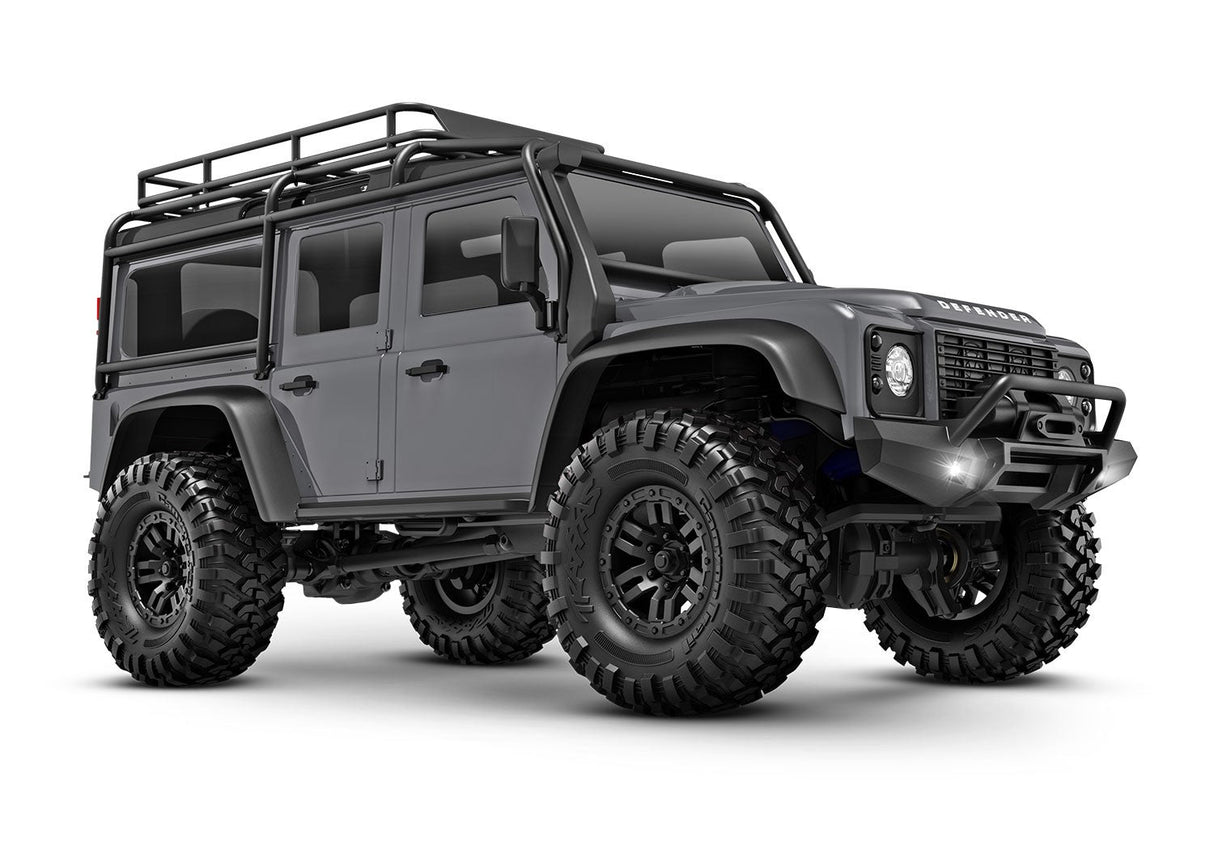

Traxxas TRX-4M Defender Land Rover 1/18 4WD RTR Scale Rock Crawler RC Auto

TRAXXAS TRX-4M LR DEFENDER 4X4 RTR INKL. AKKU / LADER 1/18 4WD SCALE-CRAWLER

Clipless ABS Body

Highly-detailed licensed bodies

Molded-in color won’t chip or flake

Tough fender flares and rock sliders

Realistic side mirrors, door handles, & wipers

LED bumper lights

Heavy-duty latching clips

Hold tightly on the trail

Release in just seconds

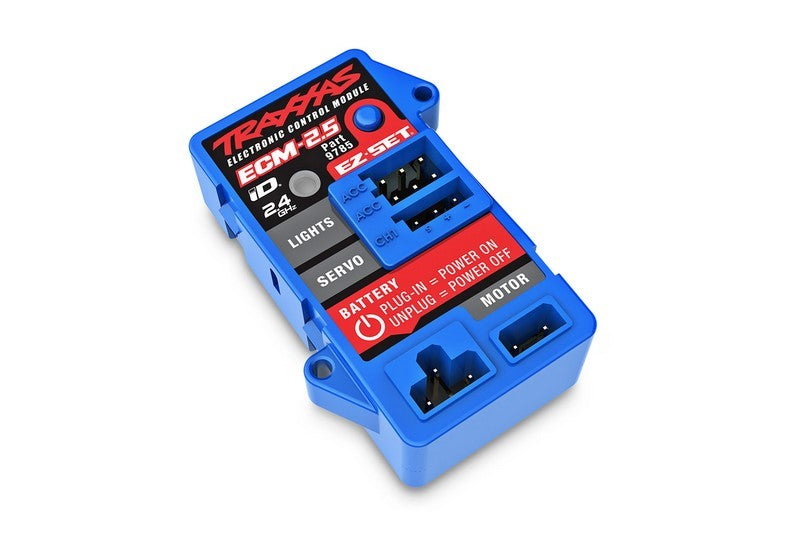

ECM-2.5™ Electronic Control Module

Incorporates ESC, receiver, and LED controller in one chassis

Fully waterproof for all-weather fun

Three drive profiles

Sport Mode – forward / brake / reverse

Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral

Crawl Mode – forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set® one-button setup

Built-in Pro Scale® LED functionality

Two-stage low voltage protection (LVD)

Motor overload protection

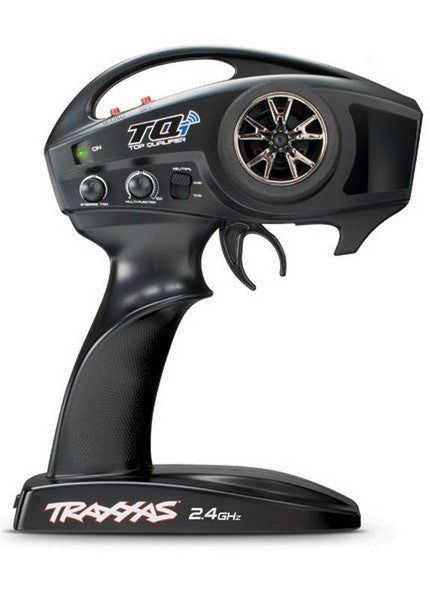

TQ™ 2.4GHz Transmitter

Full-size 2-channel transmitter

All-day comfort with precise long-range control

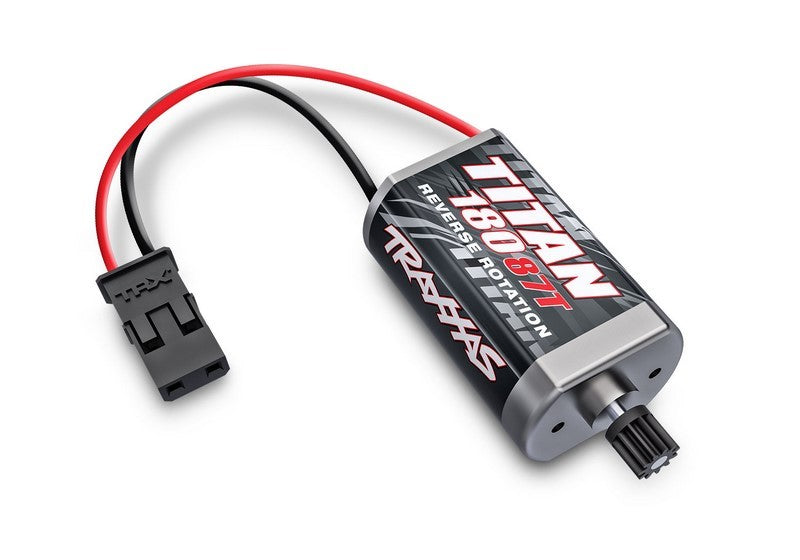

Motor

Powerful Titan® 87-turn brushed motor

Fixed gear mesh doesn’t require adjustment

Forward mounting position for improved crawling dynamics

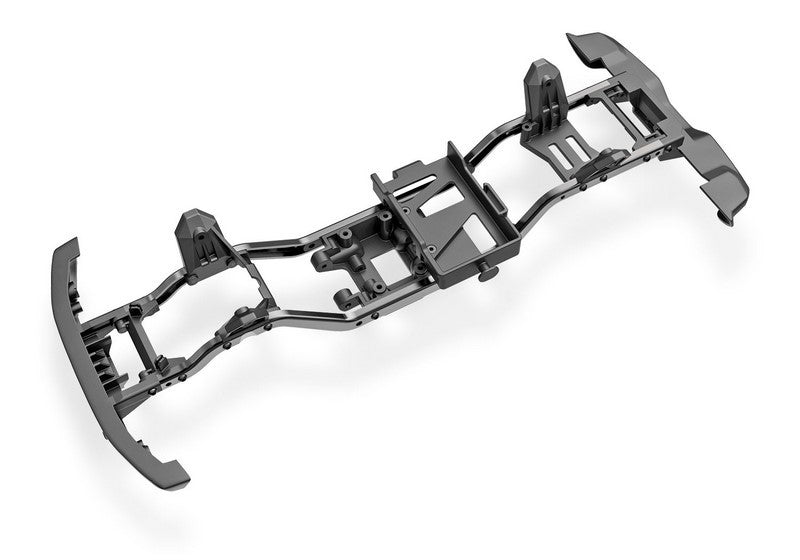

Heavy-Duty Steel Ladder Frame

Deep C-channel design

Thicker center section for maximum rigidity

Rails run from bumper to bumper

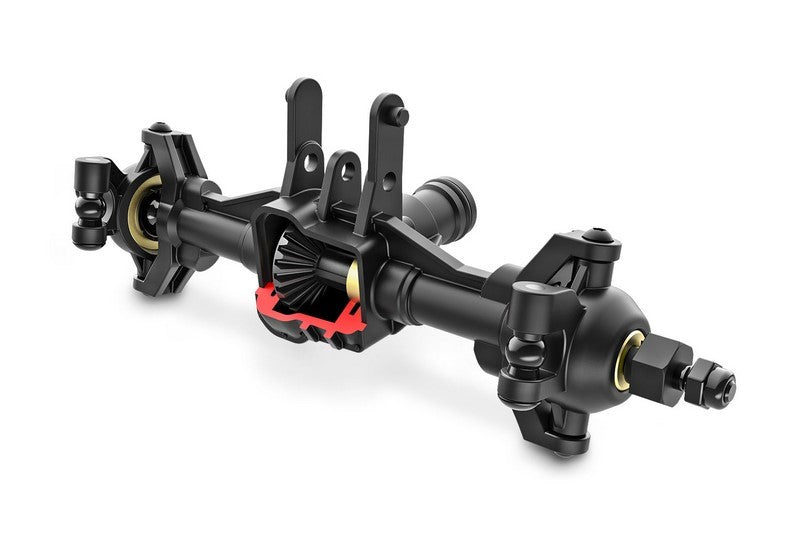

Drivetrain

Full-time shaft-driven 4-wheel drive

Solid steel axles

Spool-equipped front and rear axles

Heavy-duty CV center driveshafts

Low-CG Battery Tray

Concentrates weight lower for improved stability

Wide rubber strap secures battery in place

Optional Transmission Ratios (sold separately)

Optional Low Range or Speed Gearing transmissions

Modular design swaps out in minutes

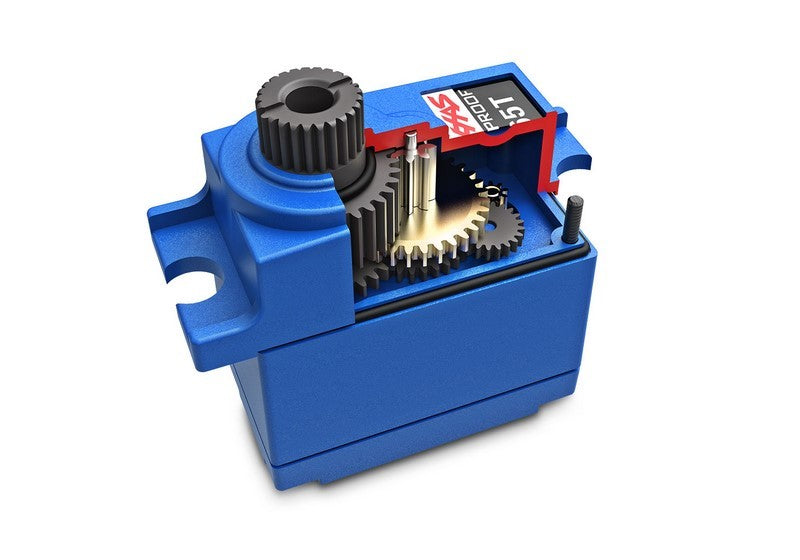

Steering

Heavy-duty 2065T steering servo

Metal main gear

Superior 45° steering angle

Direct steering (no servo saver)

Suspension

Triangulated 4 link front and rear

Heavy-duty rod ends

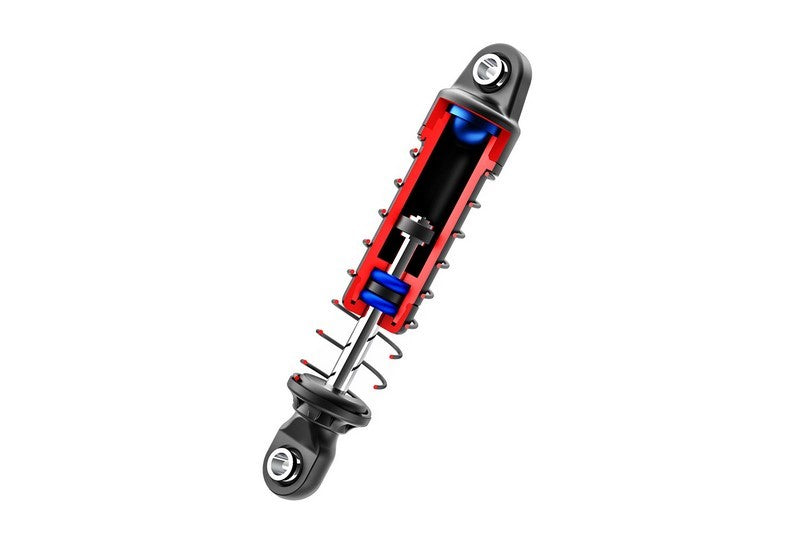

Oil-Filled GTM™ Shocks

Provides smooth controlled damping

Realistic driving body movements

Adjustable pre-load spacers

Easily refreshed with available rebuild kits

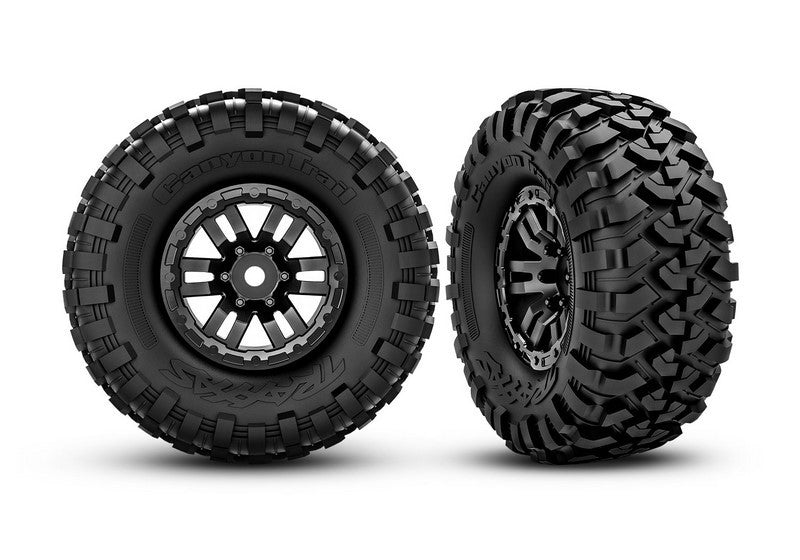

Wheels and Tires

Highly-detailed 1" Replica wheels

7mm hex

Pre-mounted tires

BF-Goodrich® Mud Terrain T/A® KM3 (Bronco)

Canyon AT (Defender)

Trail-tuned rubber compound

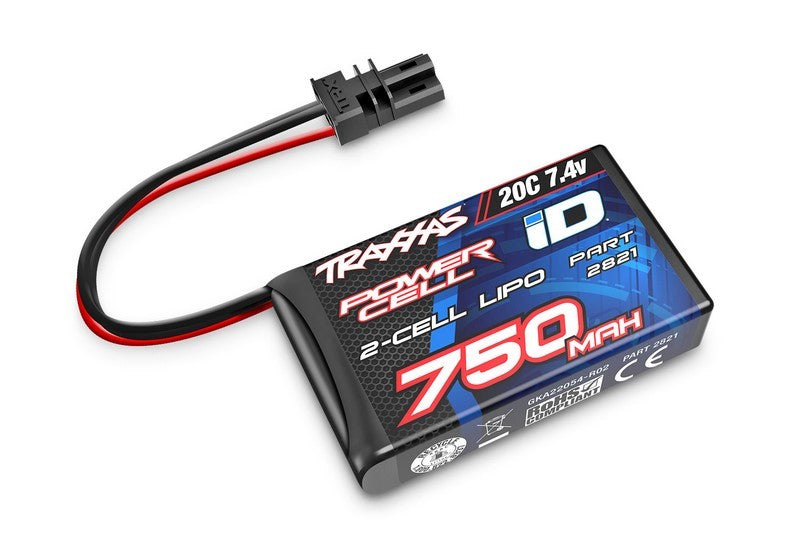

Battery and Charger Included

High-capacity 2-cell LiPo battery

7.4 volts 750mAh for over an hour of run time

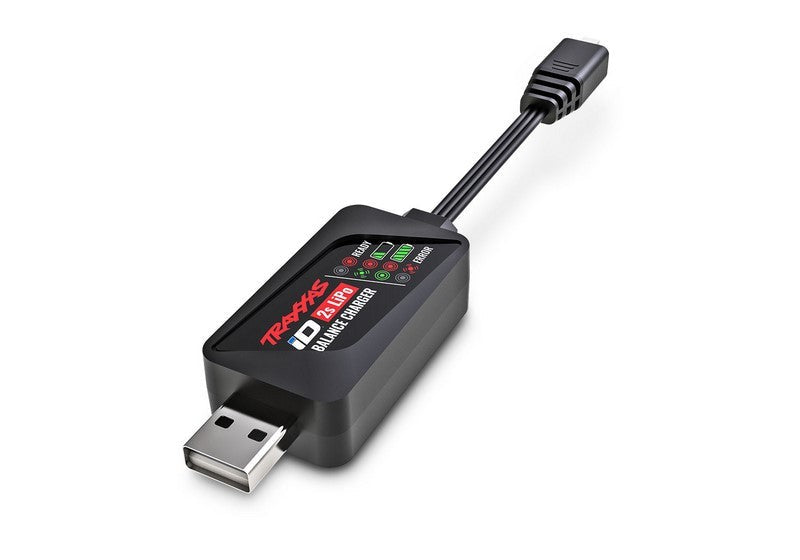

2-amp USB-powered fast charger

iD® technology for faster, safer charging

Low-Maintenance Self-Lubricating Bushings

Durable Hex hardware

Length: 10.3 inches (262mm) (Bronco)

11 inches (279mm) (Defender)

Front Track: 4.9 inches (124mm)

Rear Track: 4.9 inches (124mm)

Ground Clearance: 1.12 inches (29mm)

Weight (w/o battery): 1.03lbs (468g) (Bronco)

1.06lbs (483g) (Defender)

Height: 4.6 inches (117mm) (Bronco)

5.3 inches (135mm) (Defender)

Wheelbase: 6.10 inches (155mm)

Approach Angle: 54° (Bronco)

52° (Defender)

Breakover Angle: 45° (Bronco)

45° (Defender)

Departure Angle: 48° (Bronco)

41° (Defender)

Shock Length (front and rear): 2.0 inches (51mm)

Hex Size: 7mm

Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)

Tires (front and rear): 2.2 x 1.0 inches (57 x 25.4mm)

Electronic Control Module: ECM-2.5™

(Combo ESC, Receiver, Lighting Control*)

Motor (electric): Titan® 180 87T

Differential Type: Fully Locked; 2:1 Axle Ratio

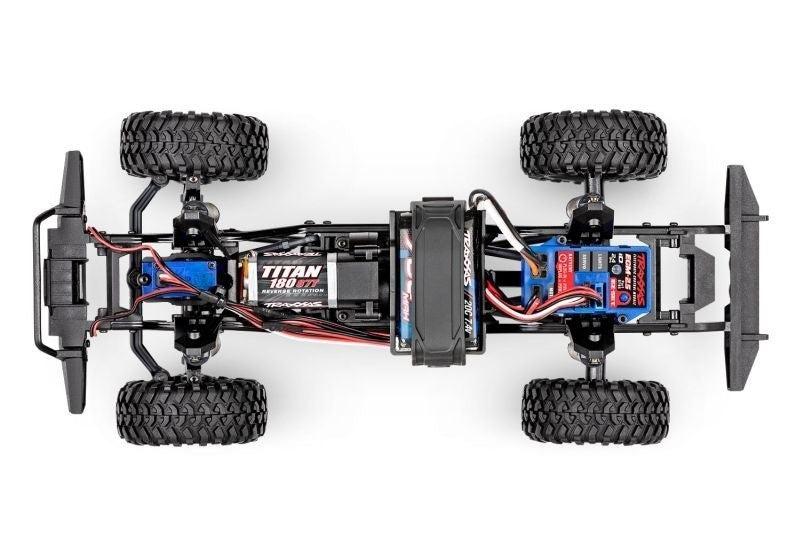

Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers

Brake Type: Electronic “Hill Hold”

Drive System: Shaft-Driven 4WD

Steering: Axle-Mounted Servo

Radio System: TQ™ 2.4GHz 2-Channel Transmitter

Servo: #2065T Heavy-Duty Waterproof

Skill Level: 1

Battery Tray: 50.5mm L X 31mm W

*Requires accessory Pro Scale LED Light Kit, sold separately

What’s In The Box:
TRX-4M® Ready-To-Race® model
Licensed ABS hard body
Titan® 180 87-turn motor
ECM-2.5™ Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD®
High quality maintenance tools

What You’ll Need:
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
